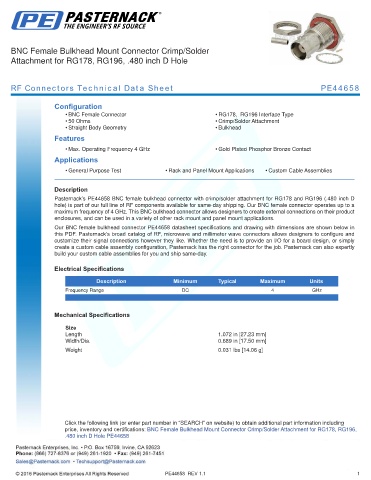

BNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG178, RG196, .480 inch D Hole

RF Connectors Technical Data Sheet PE44658

Configuration
• BNC Female Connector • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 4 GHz • Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44658 BNC female bulkhead connector with crimp/solder attachment for RG178 and RG196 (.480 inch D
hole) is part of our full line of RF components available for same-day shipping. Our BNC female connector operates up to a
maximum frequency of 4 GHz. This BNC bulkhead connector allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our BNC female bulkhead connector PE44658 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
.

Mechanical Specifications

Size
Length 1.072 in [27.23 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.031 lbs [14.06 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG178, RG196,
.480 inch D Hole PE44658

PE44658 REV 1.1 1
