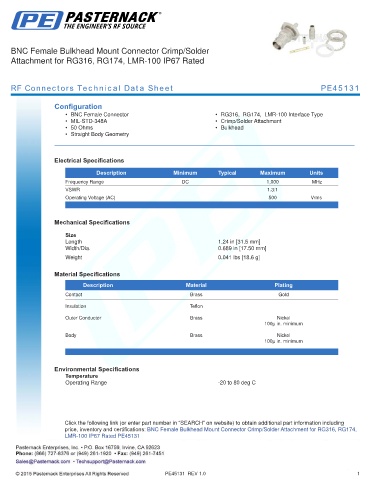

BNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG316, RG174, LMR-100 IP67 Rated

RF Connectors Technical Data Sheet PE45131

Configuration
• BNC Female Connector • RG316, RG174, LMR-100 Interface Type
• MIL-STD-348A • Crimp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.24 in [31.5 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation Teflon

Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel
100µ in. minimum
.

Environmental Specifications
Temperature
Operating Range -20 to 80 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG316, RG174,
LMR-100 IP67 Rated PE45131

PE45131 REV 1.0 1
