BNC Female Bulkhead Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400, .480 inch D Hole

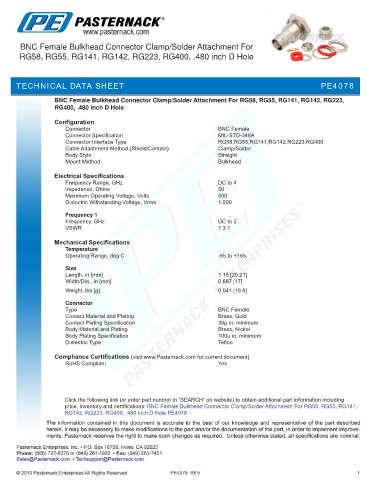

TECHNICAL DATA SHEET PE4078

BNC Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400, .480 inch D Hole

Configuration
Connector BNC Female
Connector Specification MIL-STD-348A
Connector Interface Type RG58,RG55,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 4
Impedance, Ohms 50
Maximum Operating Voltage, Volts 500
Dielectric Withstanding Voltage, Vrms 1,500

Frequency 1
Frequency, GHz DC to 2
VSWR 1.3:1

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.15 [29.21]
Width/Dia., in [mm] 0.687 [17]
.
Weight, lbs [g] 0.041 [18.6]

Connector
Type BNC Female
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400, .480 inch D Hole PE4078

PE4078 REV 1
