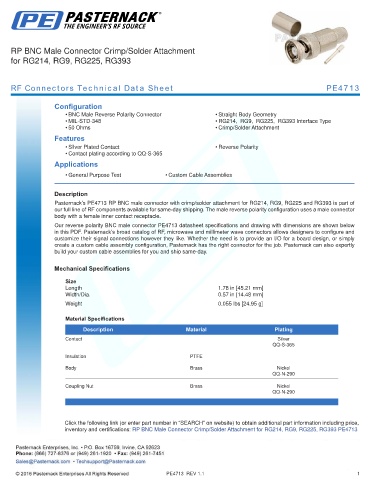

RP BNC Male Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393

RF Connectors Technical Data Sheet PE4713

Configuration
• BNC Male Reverse Polarity Connector • Straight Body Geometry
• MIL-STD-348 • RG214, RG9, RG225, RG393 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Silver Plated Contact • Reverse Polarity
• Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4713 RP BNC male connector with crimp/solder attachment for RG214, RG9, RG225 and RG393 is part of
our full line of RF components available for same-day shipping. The male reverse polarity configuration uses a male connector
body with a female inner contact receptacle.
Our reverse polarity BNC male connector PE4713 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.78 in [45.21 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Insulation PTFE
Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 PE4713

PE4713 REV 1.1 1
