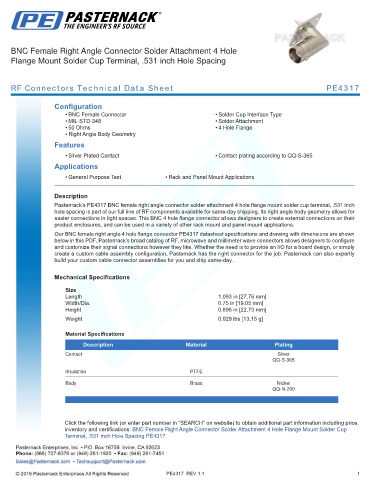

Page 1304 - 1.0/2.3 to SHV RF Connector Datasheets

BNC Female Right Angle Connector Solder Attachment 4 Hole
Flange Mount Solder Cup Terminal, .531 inch Hole Spacing

RF Connectors Technical Data Sheet PE4317

Configuration
• BNC Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Right Angle Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4317 BNC female right angle connector solder attachment 4 hole flange mount solder cup terminal, .531 inch
hole spacing is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for
easier connections in tight spaces. This BNC 4 hole flange connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our BNC female right angle 4 hole flange connector PE4317 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.093 in [27.76 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 0.895 in [22.73 mm]
.
Weight 0.029 lbs [13.15 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Right Angle Connector Solder Attachment 4 Hole Flange Mount Solder Cup
Terminal, .531 inch Hole Spacing PE4317

PE4317 REV 1.1 1
