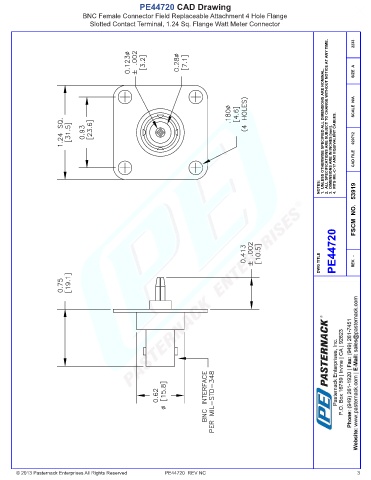

PE44720 CAD Drawing
                            BNC Female Connector Field Replaceable Attachment 4 Hole Flange
                               Slotted Contact Terminal, 1.24 Sq. Flange Watt Meter Connector


                                                                                                             2.  ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
                                                                                                                      2233


                                                                                                                      SIZE  A
                                                                                                            1.  UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.




                                                                                                                      SCALE  N/A




                                                                                                              3.  DIMENSIONS ARE IN INCHES [mm]. 4.  FITS MIL-C-17 AND EQUIVALENT CABLES.  020712  CAD FILE









                                                                                                           NOTES:
                                                                                                                      FSCM  NO.   53919







                                                                                                                PE44720



                                                                                                           DWG TITLE  REV.  -











































      © 2013 Pasternack Enterprises All Rights Reserved  PE44720  REV NC                                               3
