BNC Female Connector Field Replaceable
Attachment 4 Hole Flange Slotted Contact Terminal,
1.24 Sq. Flange Watt Meter Connector

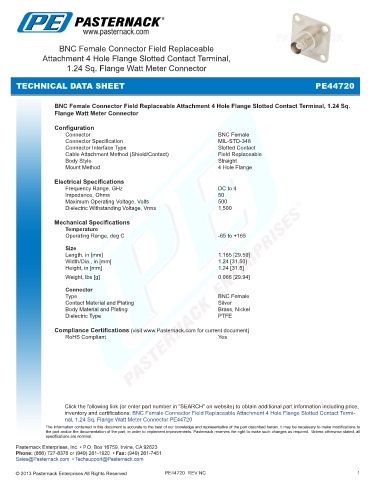

TECHNICAL DATA SHEET PE44720

BNC Female Connector Field Replaceable Attachment 4 Hole Flange Slotted Contact Terminal, 1.24 Sq.
Flange Watt Meter Connector

Configuration
Connector BNC Female
Connector Specification MIL-STD-348
Connector Interface Type Slotted Contact
Cable Attachment Method (Shield/Contact) Field Replaceable
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Frequency Range, GHz DC to 4
Impedance, Ohms 50
Maximum Operating Voltage, Volts 500
Dielectric Withstanding Voltage, Vrms 1,500

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.165 [29.59]
Width/Dia., in [mm] 1.24 [31.50]
Height, in [mm] 1.24 [31.5]
.
Weight, lbs [g] 0.066 [29.94]
Connector
Type BNC Female
Contact Material and Plating Silver
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Field Replaceable Attachment 4 Hole Flange Slotted Contact Termi-
nal, 1.24 Sq. Flange Watt Meter Connector PE44720

PE44720 REV NC 1
