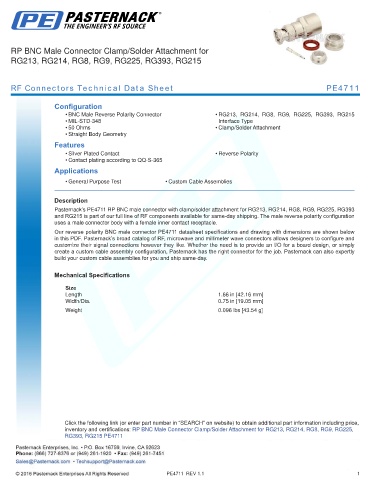

RP BNC Male Connector Clamp/Solder Attachment for
RG213, RG214, RG8, RG9, RG225, RG393, RG215

RF Connectors Technical Data Sheet PE4711

Configuration
• BNC Male Reverse Polarity Connector • RG213, RG214, RG8, RG9, RG225, RG393, RG215
• MIL-STD-348 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Silver Plated Contact • Reverse Polarity
• Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4711 RP BNC male connector with clamp/solder attachment for RG213, RG214, RG8, RG9, RG225, RG393
and RG215 is part of our full line of RF components available for same-day shipping. The male reverse polarity configuration
uses a male connector body with a female inner contact receptacle.
Our reverse polarity BNC male connector PE4711 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.66 in [42.16 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.096 lbs [43.54 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9, RG225,
RG393, RG215 PE4711

PE4711 REV 1.1 1
