Page 1326 - 1.0/2.3 to SHV RF Connector Datasheets
P. 1326

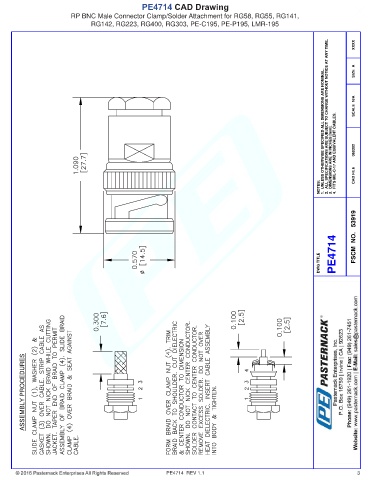

PE4714 CAD Drawing
RP BNC Male Connector Clamp/Solder Attachment for RG58, RG55, RG141,
RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 060302
NOTES: CAD FILE
DWG TITLE PE4714 FSCM NO. 53919
ASSEMBLY PROCEDURES
PE4714 REV 1.1 3
