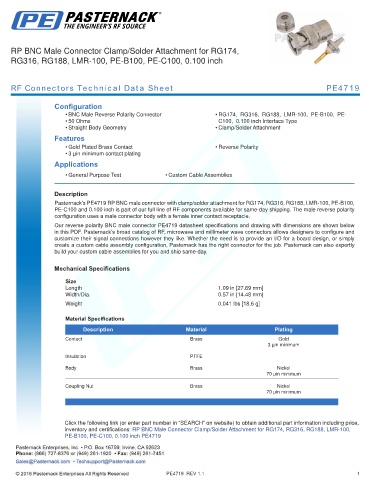

RP BNC Male Connector Clamp/Solder Attachment for RG174,
RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

RF Connectors Technical Data Sheet PE4719

Configuration
• BNC Male Reverse Polarity Connector • RG174, RG316, RG188, LMR-100, PE-B100, PE-
• 50 Ohms C100, 0.100 inch Interface Type
• Straight Body Geometry • Clamp/Solder Attachment
Features
• Gold Plated Brass Contact • Reverse Polarity
• 3 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4719 RP BNC male connector with clamp/solder attachment for RG174, RG316, RG188, LMR-100, PE-B100,
PE-C100 and 0.100 inch is part of our full line of RF components available for same-day shipping. The male reverse polarity
configuration uses a male connector body with a female inner contact receptacle.
Our reverse polarity BNC male connector PE4719 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.09 in [27.69 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
70 µin minimum

Coupling Nut Brass Nickel
70 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Connector Clamp/Solder Attachment for RG174, RG316, RG188, LMR-100,
PE-B100, PE-C100, 0.100 inch PE4719
