RP BNC Male Connector Clamp/Solder
Attachment For PE-B400, PE-B405

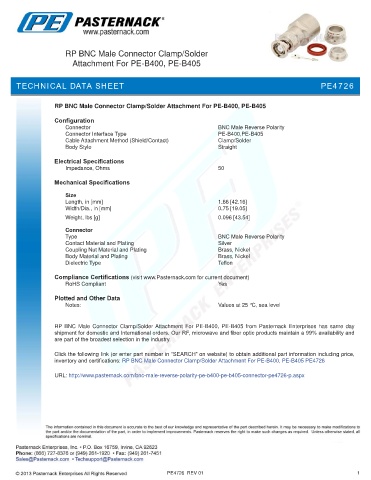

TECHNICAL DATA SHEET PE4726

RP BNC Male Connector Clamp/Solder Attachment For PE-B400, PE-B405

Configuration
Connector BNC Male Reverse Polarity
Connector Interface Type PE-B400,PE-B405
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.66 [42.16]
Width/Dia., in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.096 [43.54]

Connector
Type BNC Male Reverse Polarity
Contact Material and Plating Silver
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP BNC Male Connector Clamp/Solder Attachment For PE-B400, PE-B405 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Connector Clamp/Solder Attachment For PE-B400, PE-B405 PE4726

URL: http://www.pasternack.com/bnc-male-reverse-polarity-pe-b400-pe-b405-connector-pe4726-p.aspx

PE4726 REV 01 1
