RP BNC Male Connector Solder Attachment 4 Hole
Flange Solder Cup Terminal, .531 inch Hole Spacing

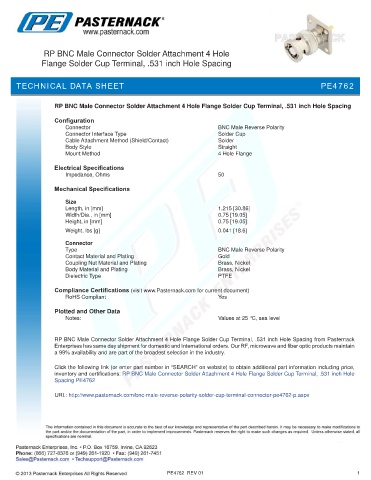

TECHNICAL DATA SHEET PE4762

RP BNC Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .531 inch Hole Spacing

Configuration
Connector BNC Male Reverse Polarity
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.215 [30.86]
Width/Dia., in [mm] 0.75 [19.05]
Height, in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.041 [18.6]
Connector
Type BNC Male Reverse Polarity
Contact Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP BNC Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .531 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .531 inch Hole
Spacing PE4762

URL: http://www.pasternack.com/bnc-male-reverse-polarity-solder-cup-terminal-connector-pe4762-p.aspx

PE4762 REV 01 1
