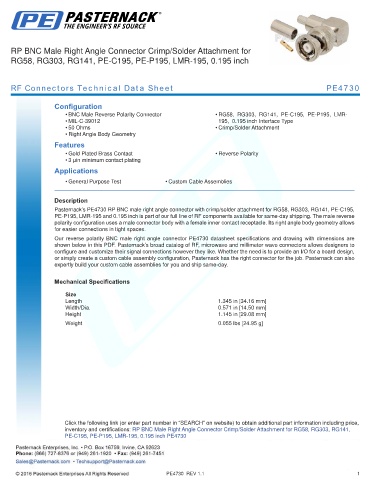

RP BNC Male Right Angle Connector Crimp/Solder Attachment for
RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE4730

Configuration
• BNC Male Reverse Polarity Connector • RG58, RG303, RG141, PE-C195, PE-P195, LMR-
• MIL-C-39012 195, 0.195 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Gold Plated Brass Contact • Reverse Polarity
• 3 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4730 RP BNC male right angle connector with crimp/solder attachment for RG58, RG303, RG141, PE-C195,
PE-P195, LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. The male reverse
polarity configuration uses a male connector body with a female inner contact receptacle. Its right angle body geometry allows
for easier connections in tight spaces.
Our reverse polarity BNC male right angle connector PE4730 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.345 in [34.16 mm]
Width/Dia. 0.571 in [14.50 mm]
Height 1.145 in [29.08 mm]
.
Weight 0.055 lbs [24.95 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Right Angle Connector Crimp/Solder Attachment for RG58, RG303, RG141,
PE-C195, PE-P195, LMR-195, 0.195 inch PE4730

PE4730 REV 1.1 1
