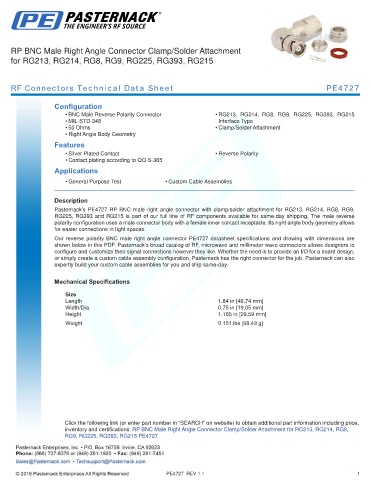

RP BNC Male Right Angle Connector Clamp/Solder Attachment
for RG213, RG214, RG8, RG9, RG225, RG393, RG215

RF Connectors Technical Data Sheet PE4727

Configuration
• BNC Male Reverse Polarity Connector • RG213, RG214, RG8, RG9, RG225, RG393, RG215
• MIL-STD-348 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Silver Plated Contact • Reverse Polarity
• Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4727 RP BNC male right angle connector with clamp/solder attachment for RG213, RG214, RG8, RG9,
RG225, RG393 and RG215 is part of our full line of RF components available for same-day shipping. The male reverse
polarity configuration uses a male connector body with a female inner contact receptacle. Its right angle body geometry allows
for easier connections in tight spaces.
Our reverse polarity BNC male right angle connector PE4727 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.84 in [46.74 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 1.165 in [29.59 mm]
.
Weight 0.151 lbs [68.49 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Right Angle Connector Clamp/Solder Attachment for RG213, RG214, RG8,
RG9, RG225, RG393, RG215 PE4727

PE4727 REV 1.1 1
