RP BNC Male Right Angle Connector Crimp/Solder
Attachment For RG174, RG316, RG188

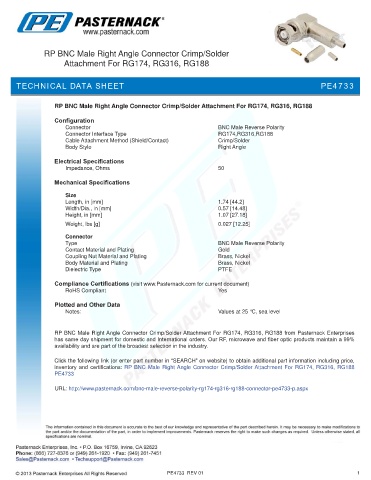

TECHNICAL DATA SHEET PE4733

RP BNC Male Right Angle Connector Crimp/Solder Attachment For RG174, RG316, RG188

Configuration
Connector BNC Male Reverse Polarity
Connector Interface Type RG174,RG316,RG188
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.74 [44.2]
Width/Dia., in [mm] 0.57 [14.48]
Height, in [mm] 1.07 [27.18]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type BNC Male Reverse Polarity
Contact Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP BNC Male Right Angle Connector Crimp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Right Angle Connector Crimp/Solder Attachment For RG174, RG316, RG188
PE4733
