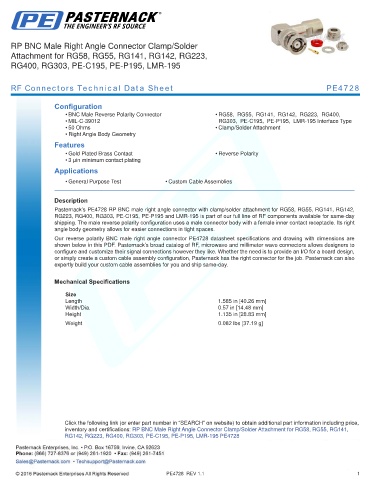

RP BNC Male Right Angle Connector Clamp/Solder
     Attachment for RG58, RG55, RG141, RG142, RG223,
     RG400, RG303, PE-C195, PE-P195, LMR-195



     RF Connectors Technical Data Sheet                                                                      PE4728


                   Configuration
                       • BNC Male Reverse Polarity Connector            • RG58,  RG55,  RG141,  RG142,  RG223,  RG400,
                       • MIL-C-39012                                     RG303,  PE-C195,  PE-P195,  LMR-195 Interface Type
                       • 50 Ohms                                        • Clamp/Solder Attachment
                       • Right Angle Body Geometry
                   Features
                       • Gold Plated Brass Contact                      • Reverse Polarity
                       • 3 µin minimum contact plating
                   Applications

                       • General Purpose Test           • Custom Cable Assemblies
                   .
                   Description
                   Pasternack’s PE4728 RP BNC male right angle connector with clamp/solder attachment for RG58, RG55, RG141, RG142,
                   RG223, RG400, RG303, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day
                   shipping. The male reverse polarity configuration uses a male connector body with a female inner contact receptacle. Its right
                   angle body geometry allows for easier connections in tight spaces.
                   Our reverse polarity BNC male right angle connector PE4728 datasheet specifications and drawing with dimensions are
                   shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
                   configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
                   or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
                   expertly build your custom cable assemblies for you and ship same-day.

                   Mechanical Specifications

                       Size
                       Length                                            1.585 in [40.26 mm]
                       Width/Dia.                                        0.57 in [14.48 mm]
                       Height                                            1.135 in [28.83 mm]
                       .
                       Weight                                            0.082 lbs [37.19 g]
                       .

















                      Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
                      inventory and certifications: RP BNC Male Right Angle Connector Clamp/Solder Attachment for RG58, RG55, RG141,
                      RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 PE4728






                                                        PE4728  REV 1.1                                                1
