RP BNC Male Right Angle Connector Clamp/
Solder Attachment For RG59, RG62

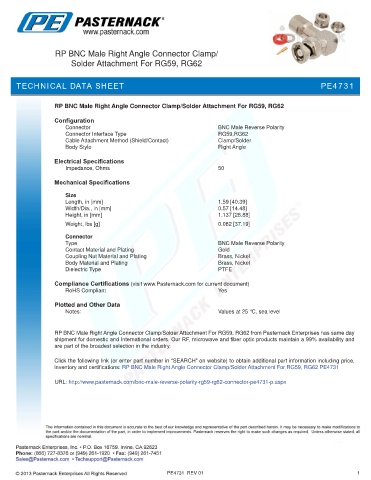

TECHNICAL DATA SHEET PE4731

RP BNC Male Right Angle Connector Clamp/Solder Attachment For RG59, RG62

Configuration
Connector BNC Male Reverse Polarity
Connector Interface Type RG59,RG62
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.59 [40.39]
Width/Dia., in [mm] 0.57 [14.48]
Height, in [mm] 1.137 [28.88]
.
Weight, lbs [g] 0.082 [37.19]
Connector
Type BNC Male Reverse Polarity
Contact Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP BNC Male Right Angle Connector Clamp/Solder Attachment For RG59, RG62 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Male Right Angle Connector Clamp/Solder Attachment For RG59, RG62 PE4731

URL: http://www.pasternack.com/bnc-male-reverse-polarity-rg59-rg62-connector-pe4731-p.aspx

PE4731 REV 01 1
