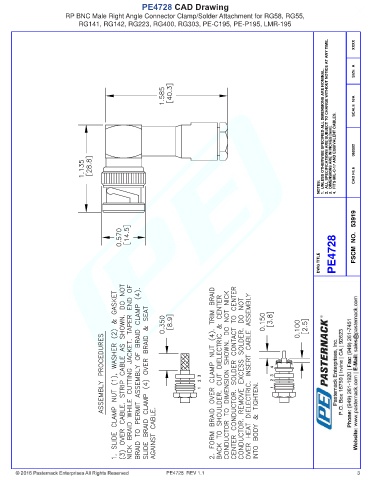

PE4728 CAD Drawing
RP BNC Male Right Angle Connector Clamp/Solder Attachment for RG58, RG55,
RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 060502
NOTES: CAD FILE
DWG TITLE PE4728 FSCM NO. 53919
PE4728 REV 1.1 3
