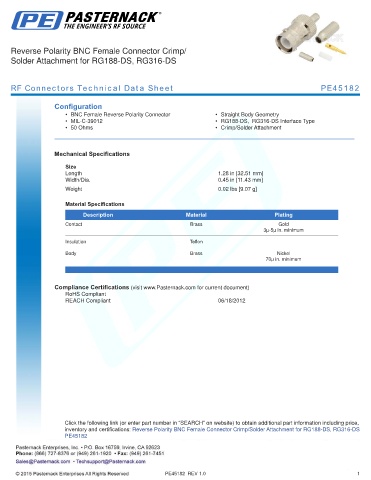

Reverse Polarity BNC Female Connector Crimp/
Solder Attachment for RG188-DS, RG316-DS

RF Connectors Technical Data Sheet PE45182

Configuration
• BNC Female Reverse Polarity Connector • Straight Body Geometry
• MIL-C-39012 • RG188-DS, RG316-DS Interface Type
• 50 Ohms • Crimp/Solder Attachment
.

Mechanical Specifications

Size
Length 1.28 in [32.51 mm]
Width/Dia. 0.45 in [11.43 mm]
.
Weight 0.02 lbs [9.07 g]
.
Material Specifications

Description Material Plating
Contact Brass Gold
3µ-5µ in. minimum
Insulation Teflon

Body Brass Nickel
70µ in. minimum
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Reverse Polarity BNC Female Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
PE45182
