RP BNC Female Connector Crimp/Solder Attachment For RG58

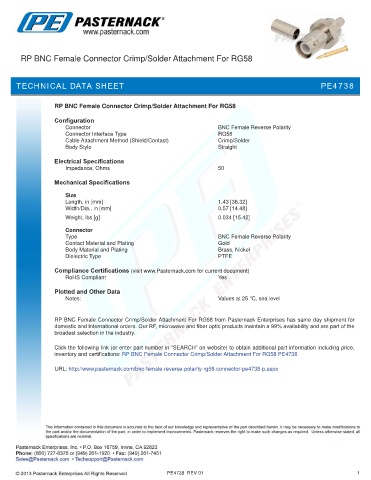

TECHNICAL DATA SHEET PE4738

RP BNC Female Connector Crimp/Solder Attachment For RG58

Configuration
Connector BNC Female Reverse Polarity
Connector Interface Type RG58
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.43 [36.32]
Width/Dia., in [mm] 0.57 [14.48]
.
Weight, lbs [g] 0.034 [15.42]

Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP BNC Female Connector Crimp/Solder Attachment For RG58 from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Connector Crimp/Solder Attachment For RG58 PE4738

URL: http://www.pasternack.com/bnc-female-reverse-polarity-rg58-connector-pe4738-p.aspx

PE4738 REV 01 1
