RP BNC Female Connector Crimp/Solder
Attachment For RG174, RG316, RG188

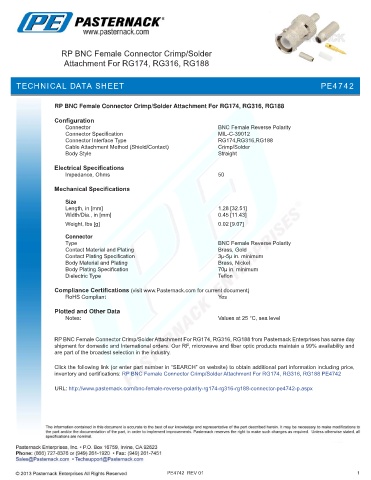

TECHNICAL DATA SHEET PE4742

RP BNC Female Connector Crimp/Solder Attachment For RG174, RG316, RG188

Configuration
Connector BNC Female Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type RG174,RG316,RG188
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.28 [32.51]
Width/Dia., in [mm] 0.45 [11.43]
.
Weight, lbs [g] 0.02 [9.07]
Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP BNC Female Connector Crimp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Connector Crimp/Solder Attachment For RG174, RG316, RG188 PE4742

URL: http://www.pasternack.com/bnc-female-reverse-polarity-rg174-rg316-rg188-connector-pe4742-p.aspx
