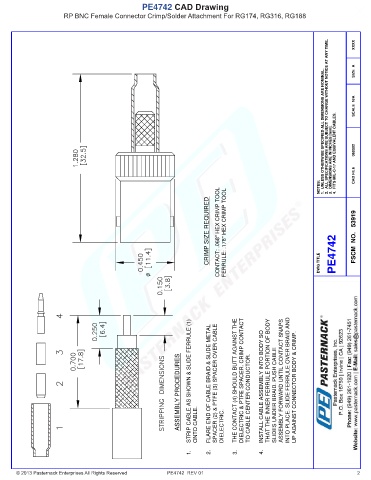

PE4742 CAD Drawing
RP BNC Female Connector Crimp/Solder Attachment For RG174, RG316, RG188

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 060502

NOTES: CAD FILE

CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .178" HEX CRIMP TOOL DWG TITLE PE4742 FSCM NO. 53919

ASSEMBLY PROCEDURES STRIP CABLE AS SHOWN & SLIDE FERRULE (1) FLARE END OF CABLE BRAID & SLIDE METAL SPACER (2) & PTFE (3) SPACER OVER CABLE THE CONTACT (4) SHOULD BUTT AGAINST THE DIELECTRIC & PTFE SPACER. CRIMP CONTACT TO CABLE CENTER CONDUCTOR. INSTALL CABLE ASSEMBLY INTO BODY SO THAT THE INNER FERRULE PORTION OF BODY SLIDES UNDER BRAID. PUSH CABLE ASSEMBLY FORWARD UNTIL CONTACT SNAPS INTO PLACE. SLIDE FERRULE OVER BRAID

1. ONTO CABLE. 2. DIELECTRIC. 3. 4.

© 2013 Pasternack Enterprises All Rights Reserved PE4742 REV 01 2
