RP BNC Female Connector Clamp/Solder Attachment
For RG213, RG214, RG8, RG9, RG225, RG393

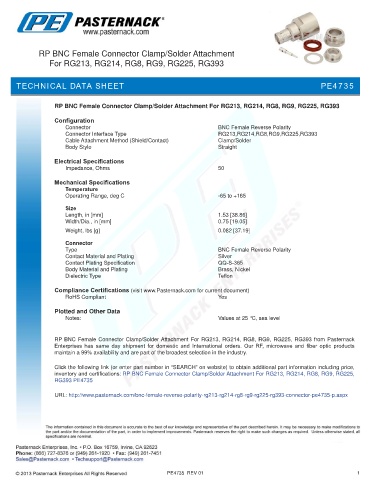

TECHNICAL DATA SHEET PE4735

RP BNC Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

Configuration
Connector BNC Female Reverse Polarity
Connector Interface Type RG213,RG214,RG8,RG9,RG225,RG393
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.53 [38.86]
Width/Dia., in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.082 [37.19]
Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP BNC Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225,
RG393 PE4735

URL: http://www.pasternack.com/bnc-female-reverse-polarity-rg213-rg214-rg8-rg9-rg225-rg393-connector-pe4735-p.aspx

PE4735 REV 01 1
