RP BNC Female Connector Clamp/Solder Attachment
For RG55, RG58, RG141, RG142, RG223, RG400

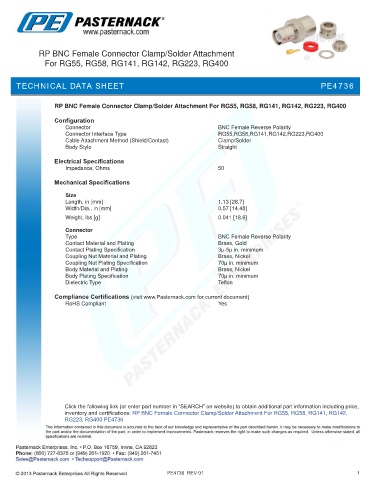

TECHNICAL DATA SHEET PE4736

RP BNC Female Connector Clamp/Solder Attachment For RG55, RG58, RG141, RG142, RG223, RG400

Configuration
Connector BNC Female Reverse Polarity
Connector Interface Type RG55,RG58,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.13 [28.7]
Width/Dia., in [mm] 0.57 [14.48]
.
Weight, lbs [g] 0.041 [18.6]

Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 70µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Connector Clamp/Solder Attachment For RG55, RG58, RG141, RG142,
RG223, RG400 PE4736

PE4736 REV 01 1
