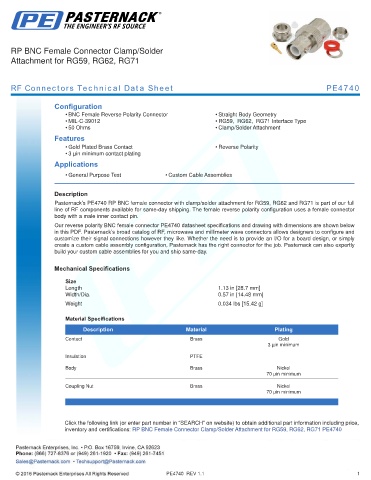

RP BNC Female Connector Clamp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4740

Configuration
• BNC Female Reverse Polarity Connector • Straight Body Geometry
• MIL-C-39012 • RG59, RG62, RG71 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Gold Plated Brass Contact • Reverse Polarity
• 3 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4740 RP BNC female connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our full
line of RF components available for same-day shipping. The female reverse polarity configuration uses a female connector
body with a male inner contact pin.
Our reverse polarity BNC female connector PE4740 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.13 in [28.7 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.034 lbs [15.42 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
70 µin minimum

Coupling Nut Brass Nickel
70 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4740

PE4740 REV 1.1 1
