RP BNC Female Bulkhead Connector Crimp/Solder
Attachment For RG174, RG316, RG188, .480 inch D Hole

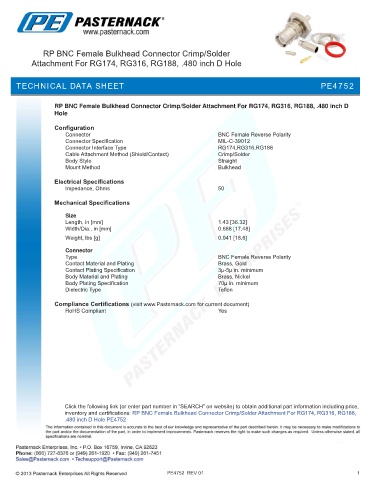

TECHNICAL DATA SHEET PE4752

RP BNC Female Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188, .480 inch D
Hole

Configuration
Connector BNC Female Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type RG174,RG316,RG188
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.43 [36.32]
Width/Dia., in [mm] 0.688 [17.48]
.
Weight, lbs [g] 0.041 [18.6]
Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188,
.480 inch D Hole PE4752

PE4752 REV 01 1
