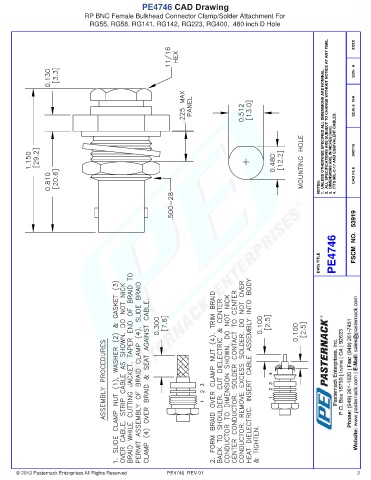

PE4746 CAD Drawing
RP BNC Female Bulkhead Connector Clamp/Solder Attachment For
RG55, RG58, RG141, RG142, RG223, RG400, .480 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042110

NOTES: CAD FILE

DWG TITLE PE4746 FSCM NO. 53919
