RP BNC Female Bulkhead Connector Clamp/
Solder Attachment For RG55, RG58, RG141,
RG142, RG223, RG400, .480 inch D Hole

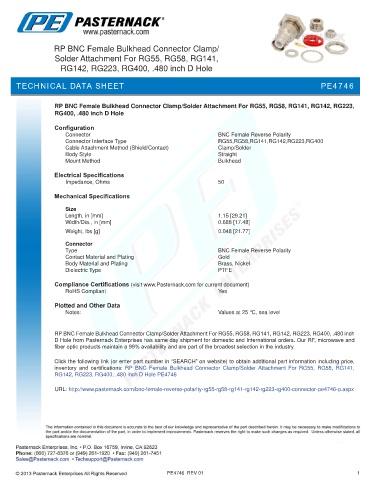

TECHNICAL DATA SHEET PE4746

RP BNC Female Bulkhead Connector Clamp/Solder Attachment For RG55, RG58, RG141, RG142, RG223,
RG400, .480 inch D Hole

Configuration
Connector BNC Female Reverse Polarity
Connector Interface Type RG55,RG58,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.15 [29.21]
Width/Dia., in [mm] 0.688 [17.48]
.
Weight, lbs [g] 0.048 [21.77]

Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP BNC Female Bulkhead Connector Clamp/Solder Attachment For RG55, RG58, RG141, RG142, RG223, RG400, .480 inch
D Hole from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and
fiber optic products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Bulkhead Connector Clamp/Solder Attachment For RG55, RG58, RG141,
RG142, RG223, RG400, .480 inch D Hole PE4746

URL: http://www.pasternack.com/bnc-female-reverse-polarity-rg55-rg58-rg141-rg142-rg223-rg400-connector-pe4746-p.aspx

PE4746 REV 01 1
