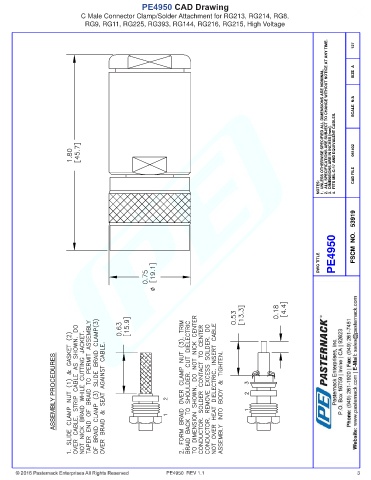

PE4950 CAD Drawing
C Male Connector Clamp/Solder Attachment for RG213, RG214, RG8,
RG9, RG11, RG225, RG393, RG144, RG216, RG215, High Voltage
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061402
NOTES: CAD FILE
DWG TITLE PE4950 FSCM NO. 53919
ASSEMBLY PROCEDURES
