C Male Connector Clamp/Solder Attachment for RG14, RG217

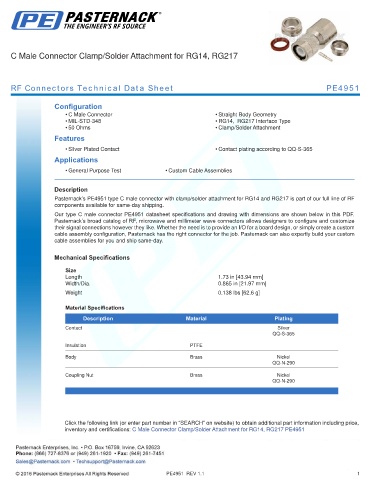

RF Connectors Technical Data Sheet PE4951

Configuration
• C Male Connector • Straight Body Geometry
• MIL-STD-348 • RG14, RG217 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4951 type C male connector with clamp/solder attachment for RG14 and RG217 is part of our full line of RF
components available for same-day shipping.
Our type C male connector PE4951 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.73 in [43.94 mm]
Width/Dia. 0.865 in [21.97 mm]
.
Weight 0.138 lbs [62.6 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male Connector Clamp/Solder Attachment for RG14, RG217 PE4951

PE4951 REV 1.1 1
