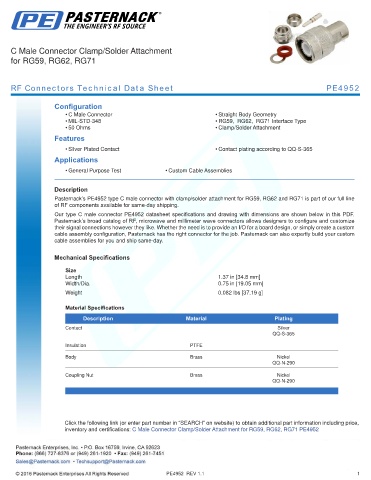

Page 1435 - 1.0/2.3 to SHV RF Connector Datasheets

C Male Connector Clamp/Solder Attachment
for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4952

Configuration
• C Male Connector • Straight Body Geometry
• MIL-STD-348 • RG59, RG62, RG71 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4952 type C male connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our full line
of RF components available for same-day shipping.
Our type C male connector PE4952 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.37 in [34.8 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.082 lbs [37.19 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4952

PE4952 REV 1.1 1
