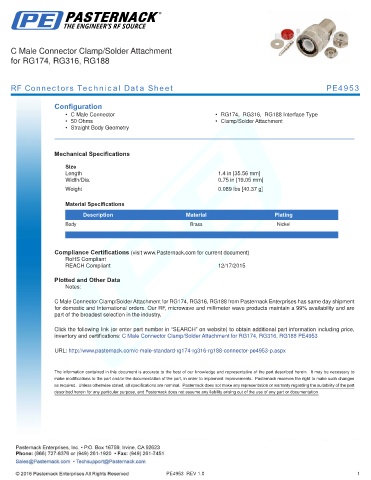

C Male Connector Clamp/Solder Attachment
for RG174, RG316, RG188

RF Connectors Technical Data Sheet PE4953

Configuration
• C Male Connector • RG174, RG316, RG188 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
.

Mechanical Specifications

Size
Length 1.4 in [35.56 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.089 lbs [40.37 g]
.
Material Specifications

Description Material Plating
Body Brass Nickel
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

C Male Connector Clamp/Solder Attachment for RG174, RG316, RG188 from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male Connector Clamp/Solder Attachment for RG174, RG316, RG188 PE4953

URL: http://www.pasternack.com/c-male-standard-rg174-rg316-rg188-connector-pe4953-p.aspx

PE4953 REV 1.0 1
