C Male Connector Clamp/Solder Attachment For RG218

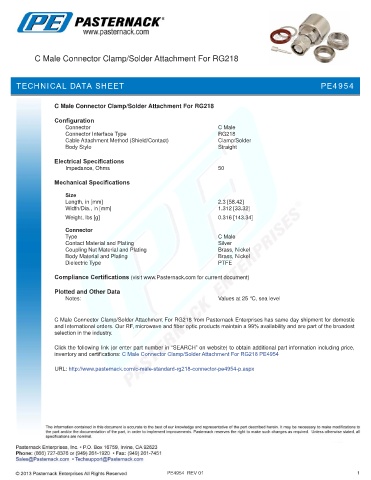

TECHNICAL DATA SHEET PE4954

C Male Connector Clamp/Solder Attachment For RG218

Configuration
Connector C Male
Connector Interface Type RG218
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 2.3 [58.42]
Width/Dia., in [mm] 1.312 [33.32]
.
Weight, lbs [g] 0.316 [143.34]

Connector
Type C Male
Contact Material and Plating Silver
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

C Male Connector Clamp/Solder Attachment For RG218 from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male Connector Clamp/Solder Attachment For RG218 PE4954

URL: http://www.pasternack.com/c-male-standard-rg218-connector-pe4954-p.aspx
