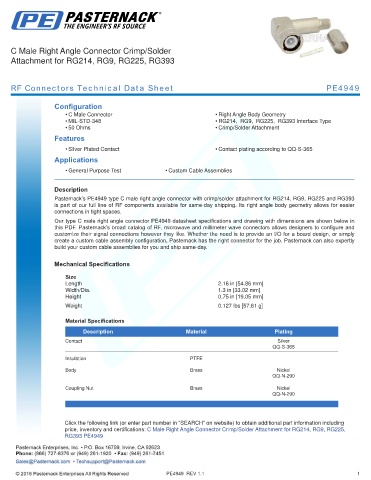

C Male Right Angle Connector Crimp/Solder
Attachment for RG214, RG9, RG225, RG393

RF Connectors Technical Data Sheet PE4949

Configuration
• C Male Connector • Right Angle Body Geometry
• MIL-STD-348 • RG214, RG9, RG225, RG393 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4949 type C male right angle connector with crimp/solder attachment for RG214, RG9, RG225 and RG393
is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier
connections in tight spaces.
Our type C male right angle connector PE4949 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 2.16 in [54.86 mm]
Width/Dia. 1.3 in [33.02 mm]
Height 0.75 in [19.05 mm]
.
Weight 0.127 lbs [57.61 g]
.
Material Specifications

Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: C Male Right Angle Connector Crimp/Solder Attachment for RG214, RG9, RG225,
RG393 PE4949
