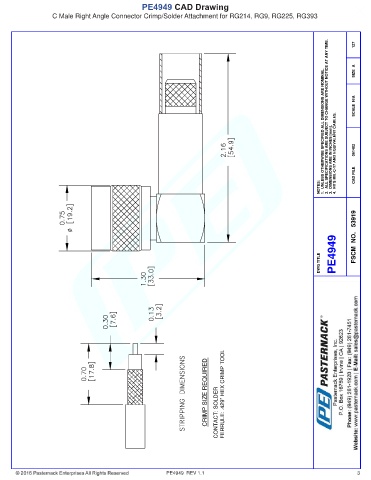

PE4949 CAD Drawing
C Male Right Angle Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061402
NOTES: CAD FILE
DWG TITLE PE4949 FSCM NO. 53919
CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL
PE4949 REV 1.1 3
