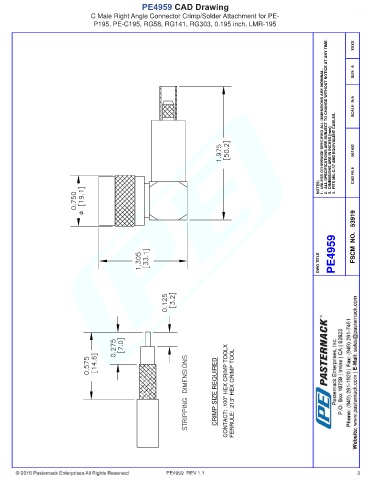

PE4959 CAD Drawing
C Male Right Angle Connector Crimp/Solder Attachment for PE-
P195, PE-C195, RG58, RG141, RG303, 0.195 inch, LMR-195

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061402

NOTES: CAD FILE

DWG TITLE PE4959 FSCM NO. 53919

CRIMP SIZE REQUIRED CONTACT: .100" HEX CRIMP TOOLX FERRULE: .213" HEX CRIMP TOOL

PE4959 REV 1.1 3
