C Male Right Angle Connector Clamp/Solder
Attachment for RG55, RG58, RG141, RG142, RG223,
RG303, RG400, PE-C195, PE-P195, LMR-195

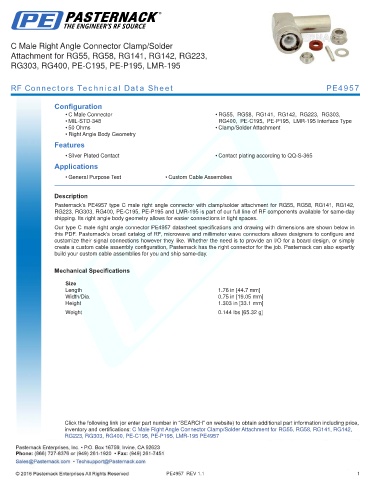

RF Connectors Technical Data Sheet PE4957

Configuration
• C Male Connector • RG55, RG58, RG141, RG142, RG223, RG303,
• MIL-STD-348 RG400, PE-C195, PE-P195, LMR-195 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4957 type C male right angle connector with clamp/solder attachment for RG55, RG58, RG141, RG142,
RG223, RG303, RG400, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day
shipping. Its right angle body geometry allows for easier connections in tight spaces.
Our type C male right angle connector PE4957 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.76 in [44.7 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 1.303 in [33.1 mm]
.
Weight 0.144 lbs [65.32 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Male Right Angle Connector Clamp/Solder Attachment for RG55, RG58, RG141, RG142,
RG223, RG303, RG400, PE-C195, PE-P195, LMR-195 PE4957

PE4957 REV 1.1 1
