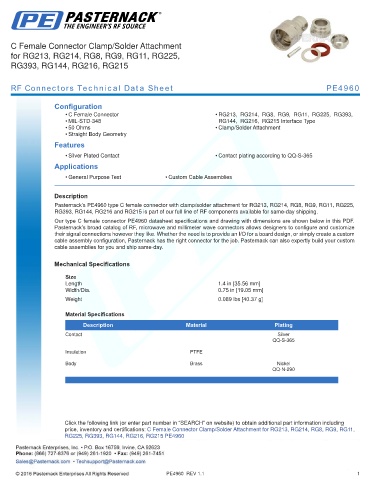

C Female Connector Clamp/Solder Attachment
for RG213, RG214, RG8, RG9, RG11, RG225,
RG393, RG144, RG216, RG215

RF Connectors Technical Data Sheet PE4960

Configuration
• C Female Connector • RG213, RG214, RG8, RG9, RG11, RG225, RG393,
• MIL-STD-348 RG144, RG216, RG215 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4960 type C female connector with clamp/solder attachment for RG213, RG214, RG8, RG9, RG11, RG225,
RG393, RG144, RG216 and RG215 is part of our full line of RF components available for same-day shipping.
Our type C female connector PE4960 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.4 in [35.56 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.089 lbs [40.37 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: C Female Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9, RG11,
RG225, RG393, RG144, RG216, RG215 PE4960

PE4960 REV 1.1 1
