C Female Connector Clamp/Solder Attachment for
RG55, RG58, RG141, RG142, RG223, RG303,
RG400, PE-C195, PE-P195, LMR-195

RF Connectors

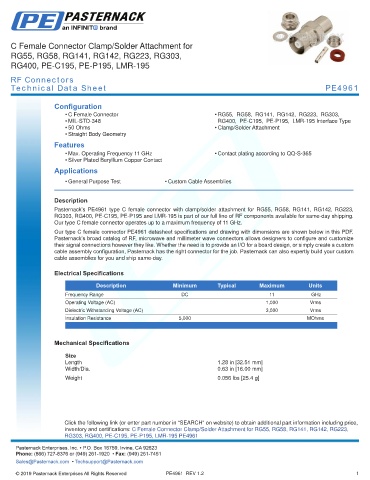

Technical Data Sheet PE4961

Configuration
• C Female Connector • RG55, RG58, RG141, RG142, RG223, RG303,
• MIL-STD-348 RG400, PE-C195, PE-P195, LMR-195 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Contact plating according to QQ-S-365
• Silver Plated Beryllium Copper Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4961 type C female connector with clamp/solder attachment for RG55, RG58, RG141, RG142, RG223,
RG303, RG400, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day shipping.
Our type C female connector operates up to a maximum frequency of 11 GHz.
Our type C female connector PE4961 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 3,000 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.28 in [32.51 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.056 lbs [25.4 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female Connector Clamp/Solder Attachment for RG55, RG58, RG141, RG142, RG223, -
RG303, RG400, PE-C195, PE-P195, LMR-195 PE4961 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4961 REV 1.2 1
