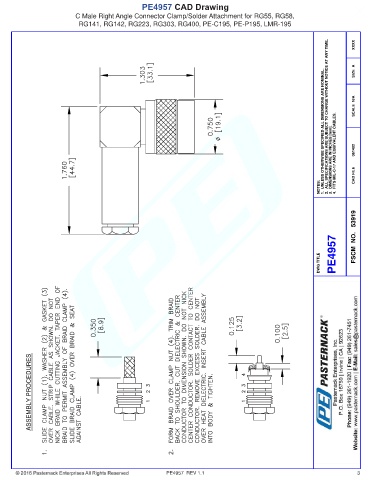

PE4957 CAD Drawing
C Male Right Angle Connector Clamp/Solder Attachment for RG55, RG58,
RG141, RG142, RG223, RG303, RG400, PE-C195, PE-P195, LMR-195
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061402
NOTES: CAD FILE
DWG TITLE PE4957 FSCM NO. 53919
ASSEMBLY PROCEDURES
PE4957 REV 1.1 3
