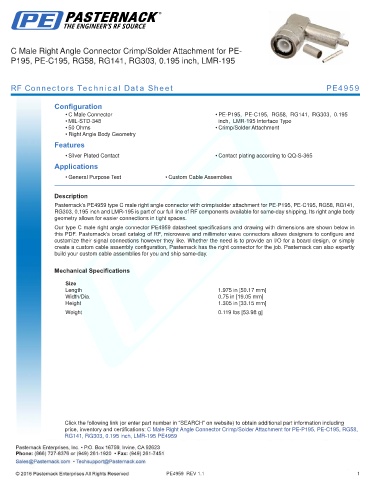

C Male Right Angle Connector Crimp/Solder Attachment for PE-
P195, PE-C195, RG58, RG141, RG303, 0.195 inch, LMR-195

RF Connectors Technical Data Sheet PE4959

Configuration
• C Male Connector • PE-P195, PE-C195, RG58, RG141, RG303, 0.195
• MIL-STD-348 inch, LMR-195 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4959 type C male right angle connector with crimp/solder attachment for PE-P195, PE-C195, RG58, RG141,
RG303, 0.195 inch and LMR-195 is part of our full line of RF components available for same-day shipping. Its right angle body
geometry allows for easier connections in tight spaces.
Our type C male right angle connector PE4959 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.975 in [50.17 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 1.305 in [33.15 mm]
.
Weight 0.119 lbs [53.98 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: C Male Right Angle Connector Crimp/Solder Attachment for PE-P195, PE-C195, RG58,
RG141, RG303, 0.195 inch, LMR-195 PE4959

PE4959 REV 1.1 1
