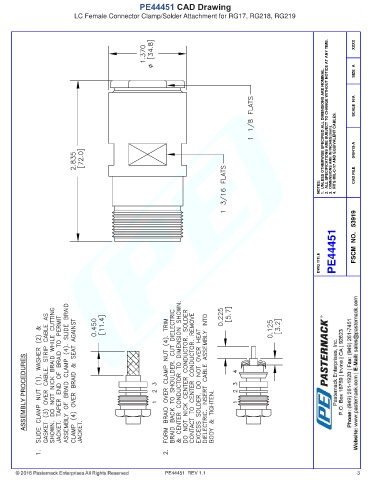

PE44451 CAD Drawing
LC Female Connector Clamp/Solder Attachment for RG17, RG218, RG219
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 040413-A
NOTES: CAD FILE
PE44451 FSCM NO. 53919
DWG TITLE
ASSEMBLY PROCEDURES
PE44451 REV 1.1 3
