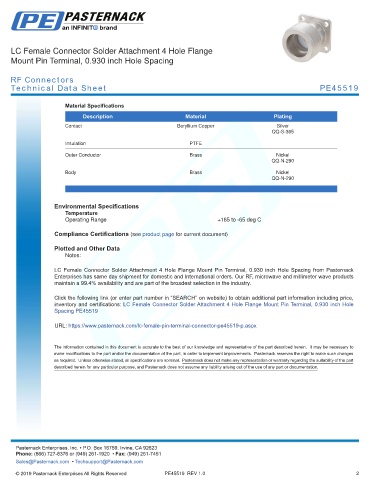

LC Female Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, 0.930 inch Hole Spacing

RF Connectors
Technical Data Sheet PE45519

Material Specifications
Description Material Plating
Contact Beryllium Copper Silver
QQ-S-365

Insulation PTFE
Outer Conductor Brass Nickel
QQ-N-290

Body Brass Nickel
QQ-N-290
.

Environmental Specifications
Temperature
Operating Range +165 to -65 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

LC Female Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, 0.930 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: LC Female Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, 0.930 inch Hole
Spacing PE45519

URL: https://www.pasternack.com/lc-female-pin-terminal-connector-pe45519-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45519 REV 1.0 2
