MC-Card Plug Connector Crimp/Solder
Attachment For RG178, RG196

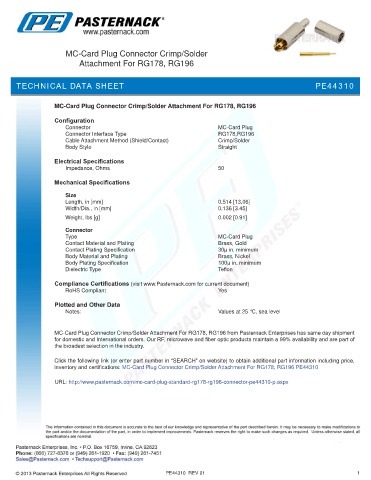

TECHNICAL DATA SHEET PE44310

MC-Card Plug Connector Crimp/Solder Attachment For RG178, RG196

Configuration
Connector MC-Card Plug
Connector Interface Type RG178,RG196
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.514 [13.06]
Width/Dia., in [mm] 0.136 [3.45]
.
Weight, lbs [g] 0.002 [0.91]

Connector
Type MC-Card Plug
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

MC-Card Plug Connector Crimp/Solder Attachment For RG178, RG196 from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MC-Card Plug Connector Crimp/Solder Attachment For RG178, RG196 PE44310

URL: http://www.pasternack.com/mc-card-plug-standard-rg178-rg196-connector-pe44310-p.aspx

PE44310 REV 01 1
