MC-Card Plug Connector Crimp/Solder
Attachment for RG188-DS, RG316-DS

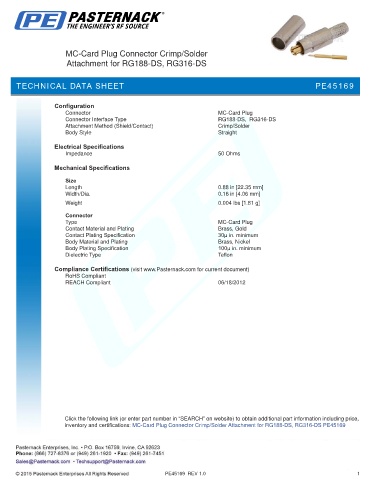

TECHNICAL DATA SHEET PE45169

Configuration
Connector MC-Card Plug
Connector Interface Type RG188-DS, RG316-DS
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Impedance 50 Ohms

Mechanical Specifications
Size
Length 0.88 in [22.35 mm]
Width/Dia. 0.16 in [4.06 mm]
.
Weight 0.004 lbs [1.81 g]

Connector
Type MC-Card Plug
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MC-Card Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS PE45169
