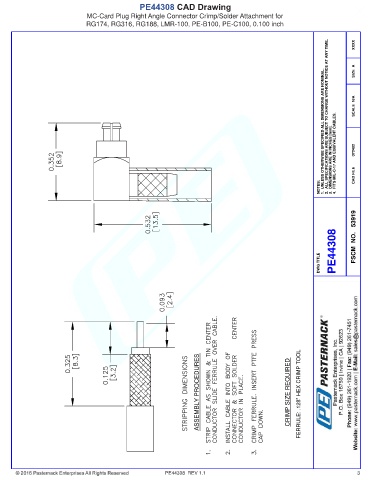

PE44308 CAD Drawing
MC-Card Plug Right Angle Connector Crimp/Solder Attachment for
RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 072402

NOTES: CAD FILE

PE44308 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES CRIMP SIZE REQUIRED FERRULE: .128" HEX CRIMP TOOL

PE44308 REV 1.1 3
