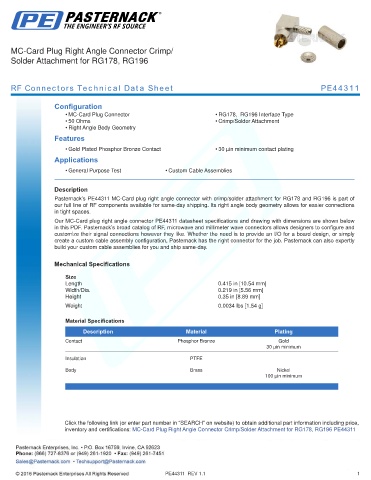

MC-Card Plug Right Angle Connector Crimp/
Solder Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE44311

Configuration
• MC-Card Plug Connector • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Gold Plated Phosphor Bronze Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44311 MC-Card plug right angle connector with crimp/solder attachment for RG178 and RG196 is part of
our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier connections
in tight spaces.
Our MC-Card plug right angle connector PE44311 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.415 in [10.54 mm]
Width/Dia. 0.219 in [5.56 mm]
Height 0.35 in [8.89 mm]
.
Weight 0.0034 lbs [1.54 g]
.
Material Specifications

Description Material Plating
Contact Phosphor Bronze Gold
30 µin minimum
Insulation PTFE

Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MC-Card Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196 PE44311

PE44311 REV 1.1 1
