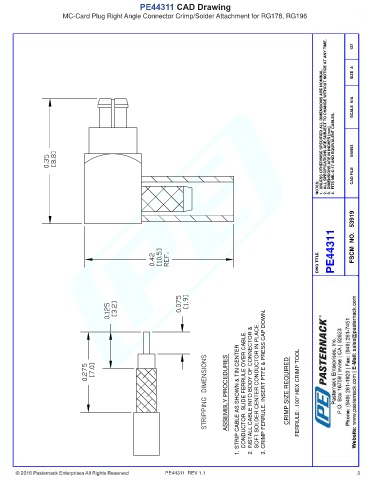

PE44311 CAD Drawing
MC-Card Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 010603

NOTES: CAD FILE

PE44311 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & TIN CENTER CONDUCTOR. SLIDE FERRULE OVER CABLE. 2. INSTALL CABLE INTO BODY OF CONNECTOR & SOFT SOLDER CENTER CONDUCTOR IN PLACE. 3. CRIMP FERRULE. INSERT PTFE & PRESS CAP DOWN. CRIMP SIZE REQUIRED FERRULE: .100" HEX CRIMP TOOL

PE44311 REV 1.1 3
