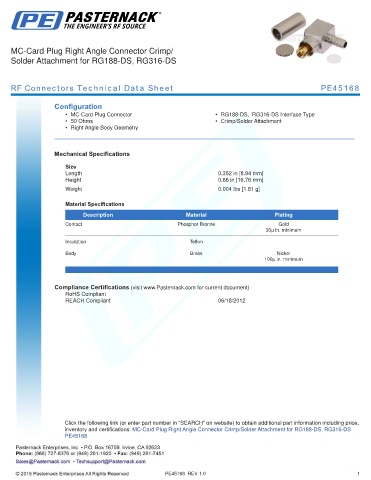

MC-Card Plug Right Angle Connector Crimp/
Solder Attachment for RG188-DS, RG316-DS

RF Connectors Technical Data Sheet PE45168

Configuration
• MC-Card Plug Connector • RG188-DS, RG316-DS Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
.

Mechanical Specifications

Size
Length 0.352 in [8.94 mm]
Height 0.66 in [16.76 mm]
.
Weight 0.004 lbs [1.81 g]
.
Material Specifications

Description Material Plating
Contact Phosphor Bronze Gold
30µ in. minimum
Insulation Teflon

Body Brass Nickel
100µ in. minimum
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MC-Card Plug Right Angle Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
PE45168
