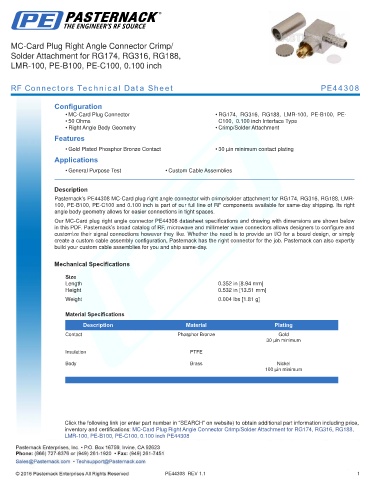

MC-Card Plug Right Angle Connector Crimp/
Solder Attachment for RG174, RG316, RG188,
LMR-100, PE-B100, PE-C100, 0.100 inch

RF Connectors Technical Data Sheet PE44308

Configuration
• MC-Card Plug Connector • RG174, RG316, RG188, LMR-100, PE-B100, PE-
• 50 Ohms C100, 0.100 inch Interface Type
• Right Angle Body Geometry • Crimp/Solder Attachment
Features
• Gold Plated Phosphor Bronze Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44308 MC-Card plug right angle connector with crimp/solder attachment for RG174, RG316, RG188, LMR-
100, PE-B100, PE-C100 and 0.100 inch is part of our full line of RF components available for same-day shipping. Its right
angle body geometry allows for easier connections in tight spaces.
Our MC-Card plug right angle connector PE44308 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.352 in [8.94 mm]
Height 0.532 in [13.51 mm]
.
Weight 0.004 lbs [1.81 g]
.
Material Specifications
Description Material Plating
Contact Phosphor Bronze Gold
30 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MC-Card Plug Right Angle Connector Crimp/Solder Attachment for RG174, RG316, RG188,
LMR-100, PE-B100, PE-C100, 0.100 inch PE44308
